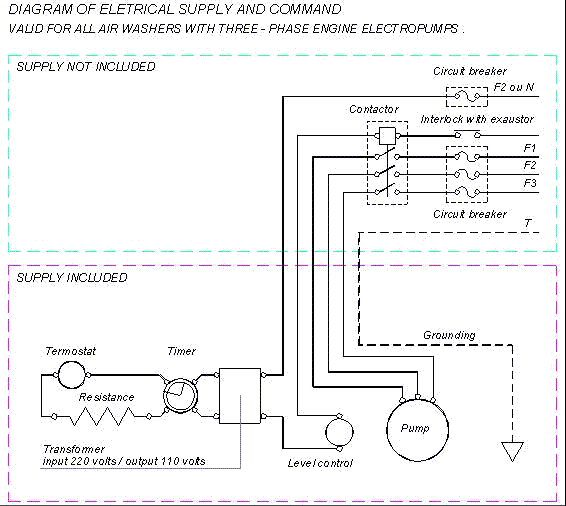

GAS WASHERS AN EFFICIENT AND MUCH MORE ECONOMIC WAY OF ELIMINATING AIR POLUITION!DIAGRAM OF ELECTRICAL SUPPLY AND COMMAND.
VALID FOR ALL AIR WASHERS WITH THREE-PHASE ENGINE ELECTROPUMPS.
IMPORTANT NOTES
1. The above diagram is valid for local electric
voltage of 380 or 220 volts, as informed in the order.
2. The interlock between the Exhaustor and the Gas Washer Pump must be provide for the purpose
of saving energy.
3. In the event the Transformer is included, it must be supplied by 220 v voltage.
4. As requested in the order, the Pump will be supplied adjusted to 220 or 380 volts,
three-phase, 60 HZ.
5. Electric Resistance and Timer will only be energized in 110 volts, one-phase, 60 HZ.
6. Electric resistance power is 1,5 KW. Pump power was informed at the time of request.
7. Level Control has the purpose of protecting the Washer's Pump and Resistance when the
level of the re-circulation water in the interior of the Tank is lower than the one
recommended..
